Integrate IO – OLI MOTION CONTROL

Integrate IO

Basic Introduction

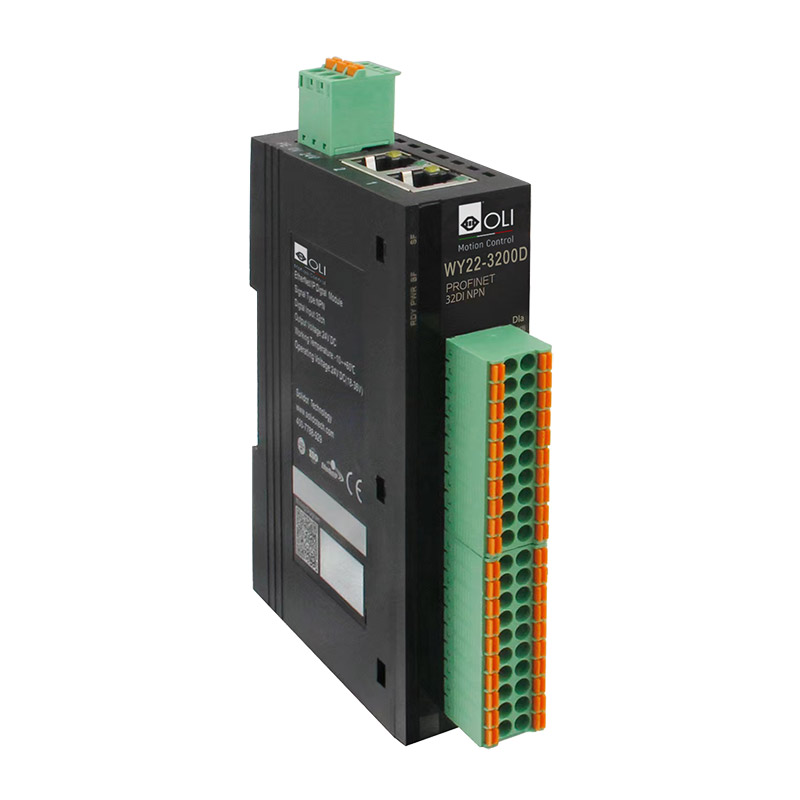

Integrated I/O module uses the EtherCAT Industrial Ethernet bus and is the standard IO architecture EtherCAT slave device. The modules occupy small space, high real-time, rich types, for users to high-speed data acquisition, optimize system configuration, simplify the field wiring, improve system reliability and so on to provide a variety of choices.

Advantages and characteristics

1, small size, compact structure, small space.
2, I/O variety, support flexible expansion; It can integrate digital, analog, temperature, pulse and other modules, which can meet the application needs of different applications.
3, innovative channel indicator design, close to the channel, channel status at a glance, easy to detect and maintain.
4, the configuration is simple, support major mainstream EtherCAT master station.
5, DIN 35 mm standard rail installation, the use of shrapnel terminals, wiring is convenient and fast.

Description

Description

Interface parameters
Bus Protocol	EtherCAT
I/O Station	Accroding to master station
Data Transmission Medium	Ethernet/EtherCAT CAT5 cable
Transmission Distance	≤100m(station distance)
Transmission Rate	100 Mbps
Bus Interface	2 x RJ45
Technical Paremeter
Configuration mode	Through the master station
Power rating(range)	24 V DC（18V~36V）
Electrical isolation	500 V AC
Weight	140g
Size	102x72x25 mm
Operating temperature	-10℃~+60℃
Storage temperature	-20℃~+75℃
Relative humidity	95%，无冷凝
Protection level	IP20

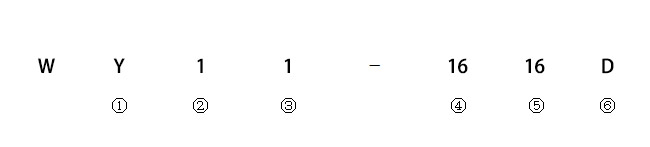

①		②		③		④		⑤		⑥
Code	Type	Code	Protocol	Code	Module	Code	Input	Code	Output	Code	Feature
Y	一体式I/O模块	1	PROFINER	1	Digital	32	32	32	32	D	NPN
		2	EtherCAT	2	Analog	16	16	16	16	S	PNP
				3	Pulse output module	08	8	08	8	Non	NPN/PNP
				4	Encoder counting module	04	4	04	4	I	Current
						02	2	02	2	U	Voltage
						00	0	00	0	A	Differential signal
						PS: (1)The max point of digital quanity support is 32,and the min channal is 16. Input and output can be mixed on a module. (2)The min channal of analog quanity is 4,and the max is 8.Input and output can not be mixed on a module. (3)Pulse output module can only choose 4 channal. (4)Encoder counting module can only choose 2 channal.
