Description

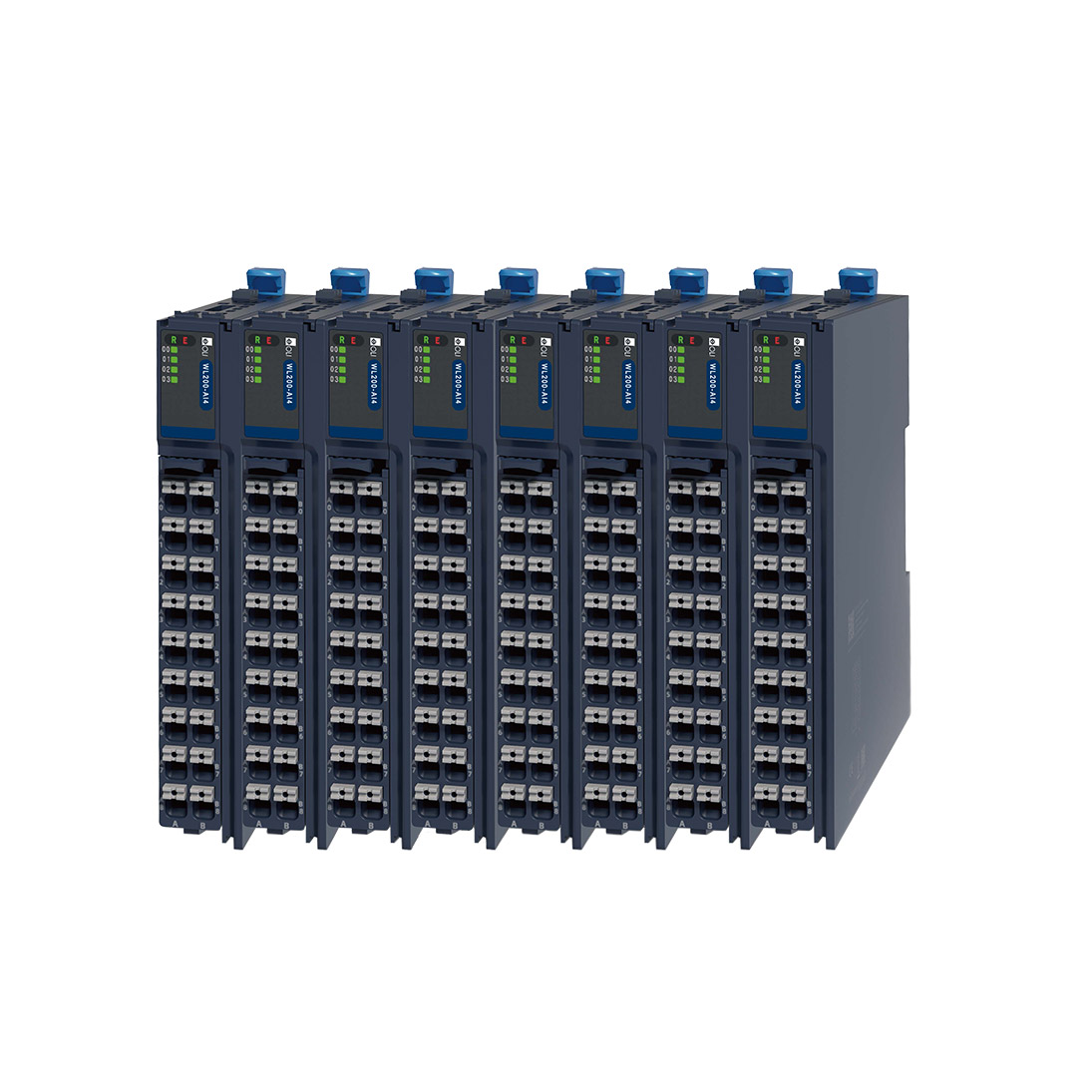

| I/O module | ||

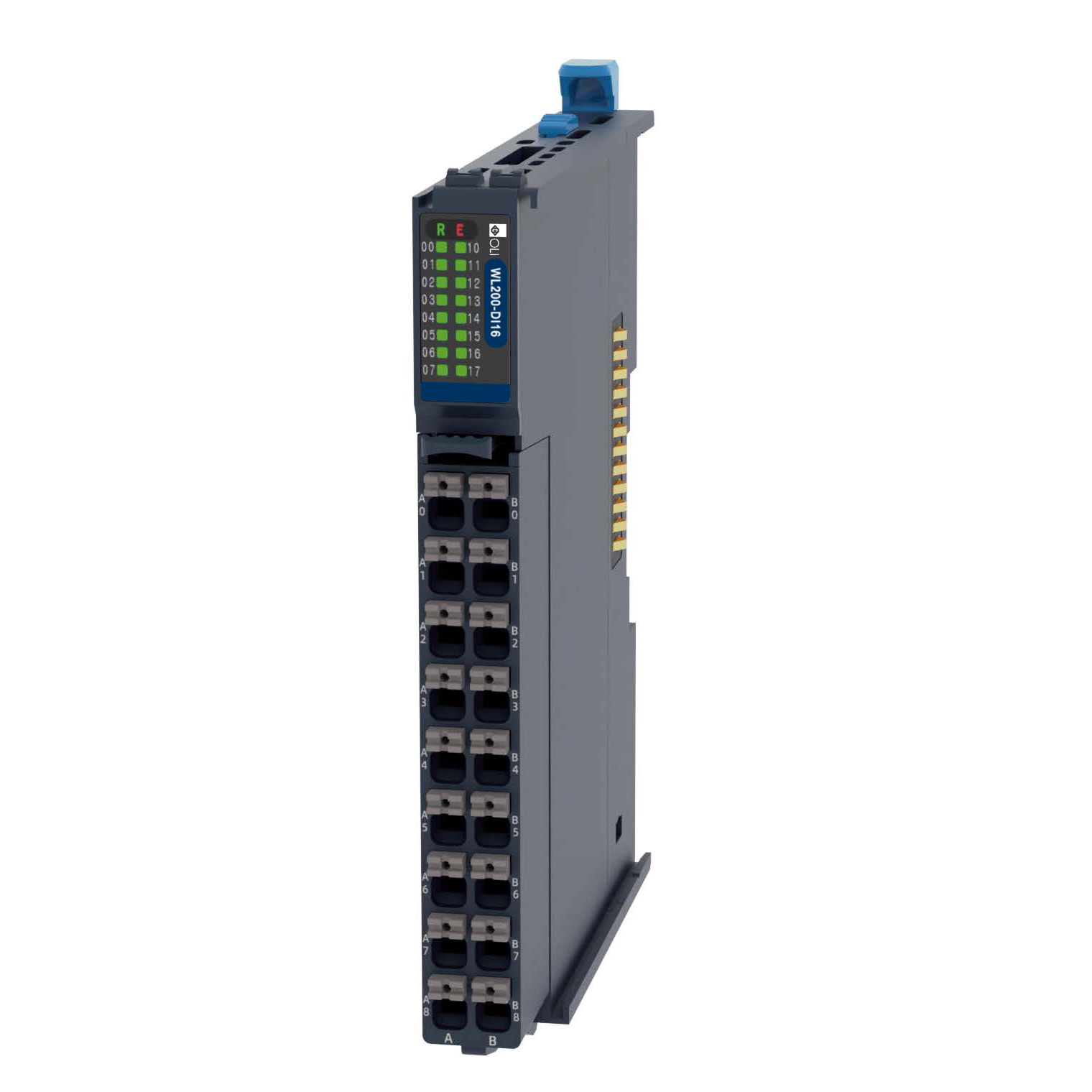

| WL200-IO(Digital) | WL200-DI16 | 16 channel digital source/drain input:DI 16*24VDC，transistor |
| WL200-DQ16S | 16 channel digital source/drain output:DO 16*24VDC/0.5A，transistor | |
| WL200-DQ16D | 16 channel digital drain output:DO 16*24VDC/0.5A，transistor | |

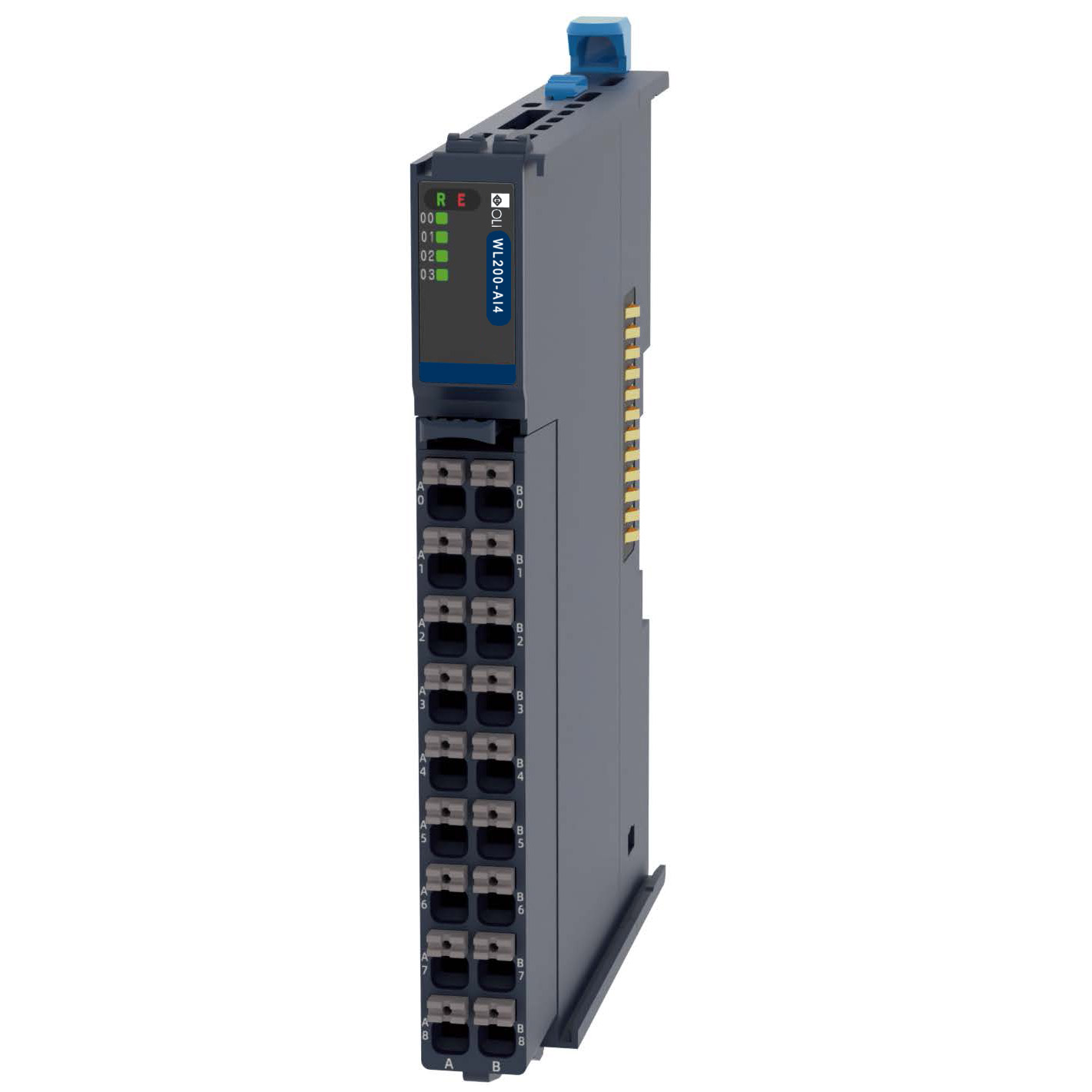

| WL200-IO(Analog) | WL200-AI4 | 4 channel analog voltage/current input:AI 4*U/I |

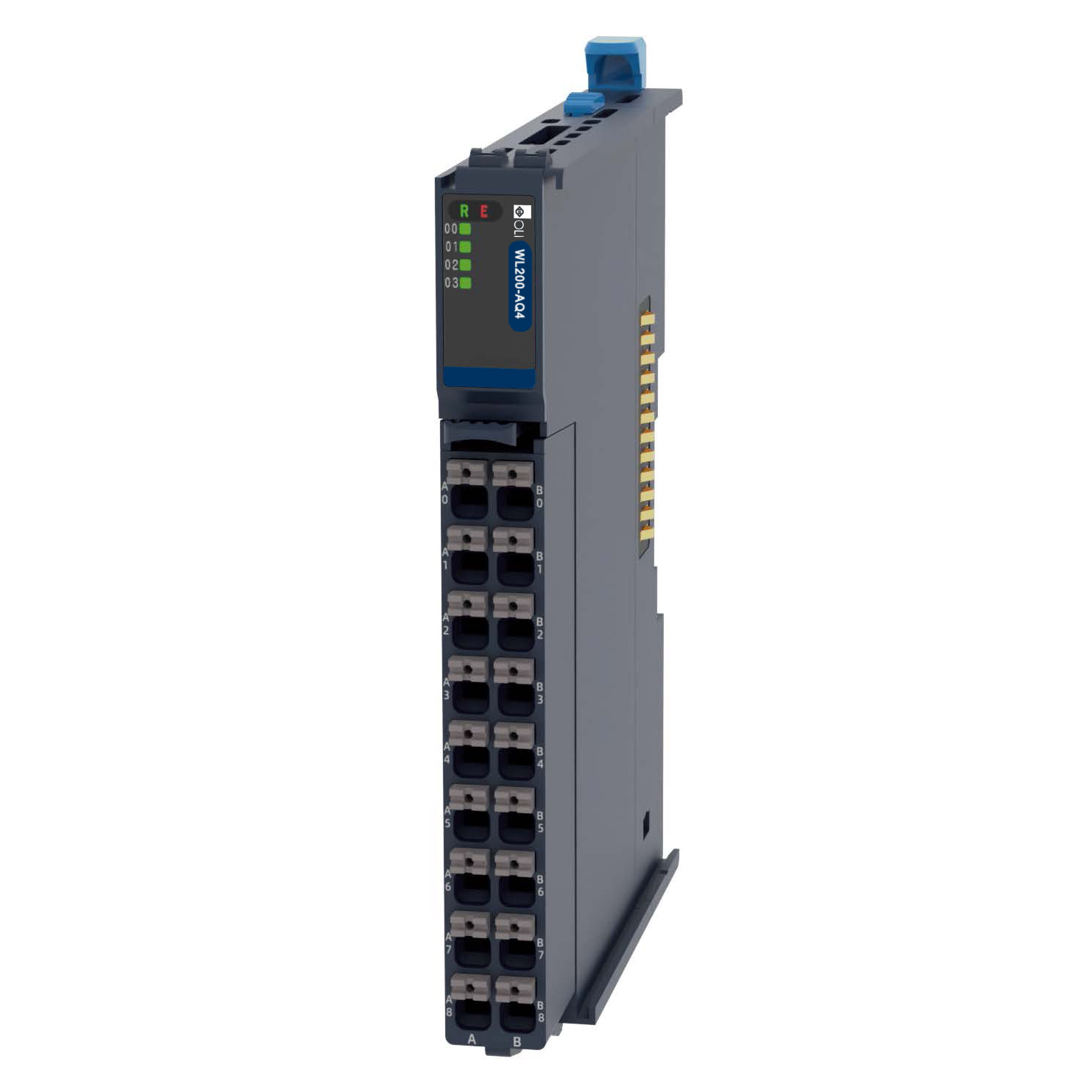

| WL200-AQ4 | 4 channel analog voltage/current output:AO 4*U/I | |
| WL200-IO(Temperature measurement module) | WL200-TC4 | 4 channel thermocouple temperature measurement: A 4*TC, thermocouple B, E, J, K, N, R, S, T |
| WL200-RTD4 | 4 channel thermal resistance temperature measurement: AI 4*RTD, thermal resistance PT100, PT1000 | |

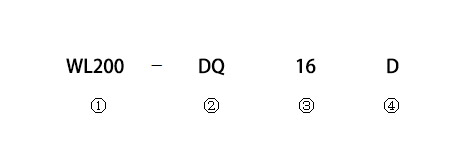

| ① | ② | ③ | ④ | ||||
| Code | Product Series | Code | Module Type | Code | Channels | Code | Special Mark |
| WL200 | WL200 series IO module | DI | Digital input | 4 | 4 channels | D | Drain output |
| DO | Digital output | 16 | 16 channels | S | Source outuput | ||
| DIO | Digital input/output | R | Relay | ||||
| AI | Analog input | ||||||
| AO | Analog output | ||||||
| TC | Thermocouple temperature measurement module | ||||||
| RTD | Thermal resistance temperature measurement module | ||||||
PS In an I/O module without a specific function identifier, number ④ is ignored as null.
