1.Hd, high brightness, full viewing AngleDescription
| Item | Parameter |

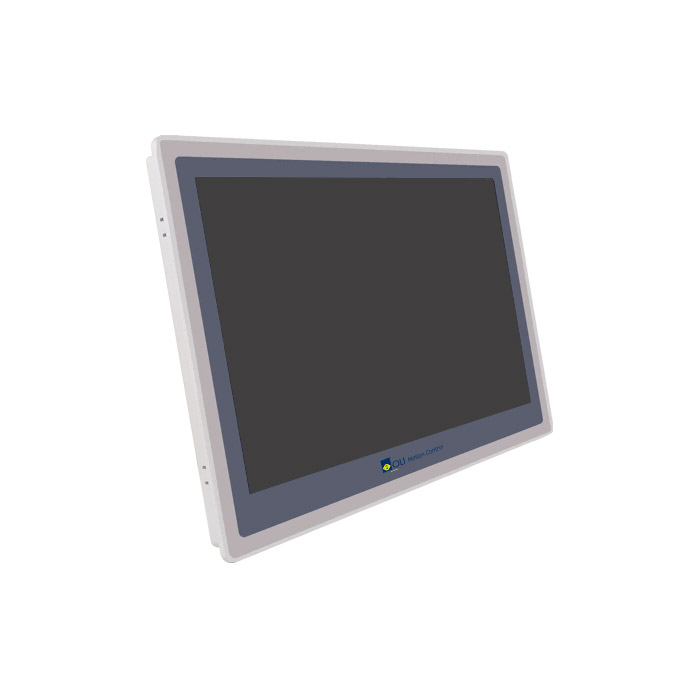

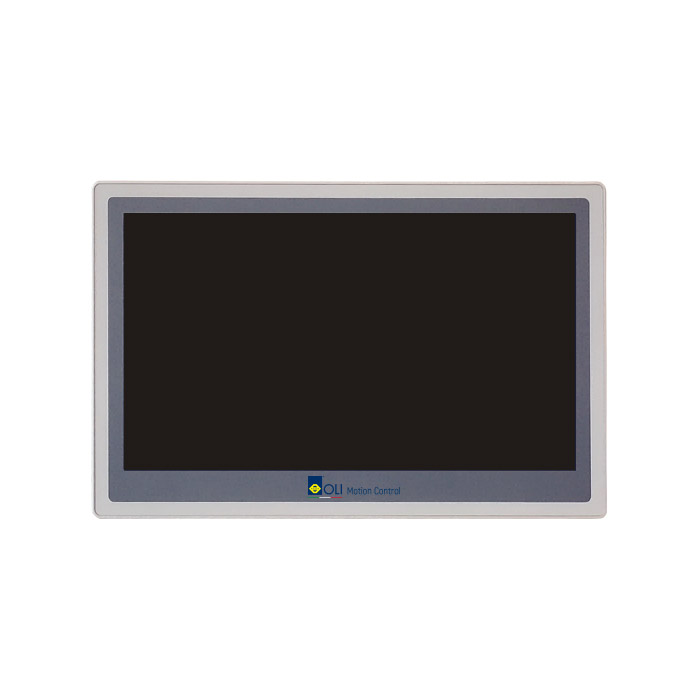

| Display | 15.6”16:9 TFT LCD Screen |
| Resolution | 1920×1080 |
| Color | 65K |
| Luminance | 250cd/m² |
| Backlight | LED |
| LCD lifetime | 50000 hours |
| Touch Screen | 4-wire industrial resistance touch screen |
| CPU | 1GARMCortex-A8 |
| Memorizer | 256MBFLASH+512MBDDR3 |
| RTC | Real-time clock built-in |
| Ethernet | MicroSD(TF) Card |
| SD Card | 2 route 10M/100M adaptive |
| USB Port | One USB Slave2.0 port;One USB Host 2.0 port |
| Program Download Mode | USB slave port/USB flash drive/Ethernet |
| Serial Communication Port | COM1/COM3：RS232/RS485/RS422； |
| COM2：RS485/RS422 | |
| LCD viewing Angle（T/B/L/R） | 85’/85’/85’/85′ |
| ① | ② | ③ | |||
| Code | Type | Code | Product Series | Code | Screen Size |
| C | Capacitive | 0 | 0 series | 070 | 7 inch |
| R | Resistance | 6 | 6000 series | 100 | 9.7 inch/10.1 inch |
| 156 | 15.6 inch | ||||
| … | … | ||||
